Product Details

Availability: Pre order – Lead time approximately between 3 Weeks.

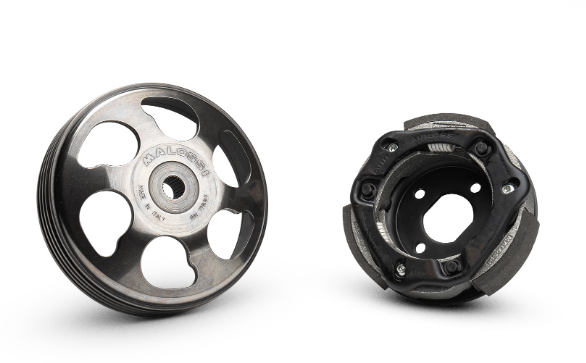

DELTA SYSTEM MHR

Complete centrifugal clutch assembly with bell for MHR scooters

System composed of the famous:

Patented adjustable clutch ( Delta Clutch )
Plus the reinforced anti-explosion bell ( Wing Clutch Bell MHR ) with dynamically balanced cooling fins, designed for competitive and sporting use.

Delta Clutch

Delta Clutch is a clutch born in the scooter racing environment and quickly became the reference tool, indispensable for tuning vehicles.

The simplicity of the system allows for the tension of the spring opposing the centrifugal force to be adjusted very quickly, and the spring itself can be replaced with others with a different K, available in the Malossi catalogue.

The other prerogative is that of varying the position of the weight which determines the pressure of the friction material against the internal wall of the bell and even of replacing the weight itself with another of a different weight.

The entire system is patented to protect the product from counterfeiters and copyists who shamelessly try to circumvent the invention with every trick in the book.

Over time, Delta has gained recognition from all the most qualified technicians, as demonstrated by the facts, as it is adopted by all racing teams and by a vast clientele of sportsmen, who have recorded a continuous increase in sales.

As is natural for Malossi, the product has always been monitored throughout its development: Delta has been gradually optimised with small but important adjustments to keep the product always at the forefront.

It’s important to note that asbestos has never been used in Malossi clutches, and we’re proud of this. To achieve today’s levels of quality and reliability, the company has invested heavily in research, especially into friction materials. It can now confidently claim to possess exclusive formulas for producing materials resistant to high temperatures, capable of maintaining the friction coefficient unchanged even when subjected to prolonged stress.

Wing Clutch Bell MHR

Technical Features

Bell forged seamlessly from 39NiCrMo5 steel, hardened and nitrided with anti-oxidation surfaces.
Anti-explosion reinforcement crown, finned to dissipate heat and protect the friction material, tested at over 20,000 RPM.
Contact surface with relief holes sized and arranged in such a way as to obtain permanent grinding of the friction material.
Original architecture with openings designed to create a dynamic ventilation effect capable of offering the possibility of intervening within the system to vary the clutch calibration.
Extremely high levels of finishing with very tight tolerances.
Given the strong interest in these two items, we thought it would be a good idea for our customers to offer a box containing both products.

This allows Malossi to provide two quality products in a single package and at a slightly lower price.

Products reserved exclusively for competitions in places specially designed for such activity according to the regulations of the competent sporting authorities. We decline any responsibility for improper use.

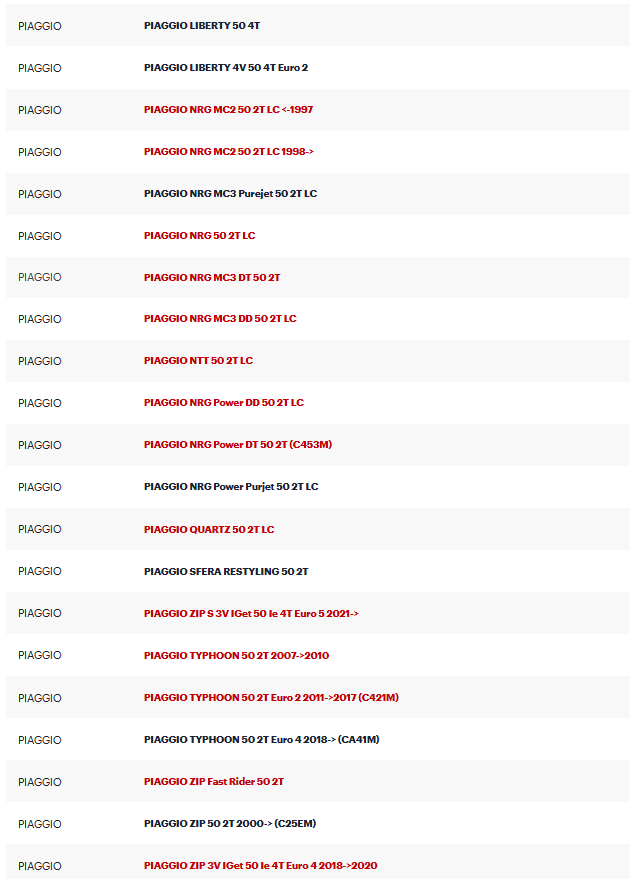

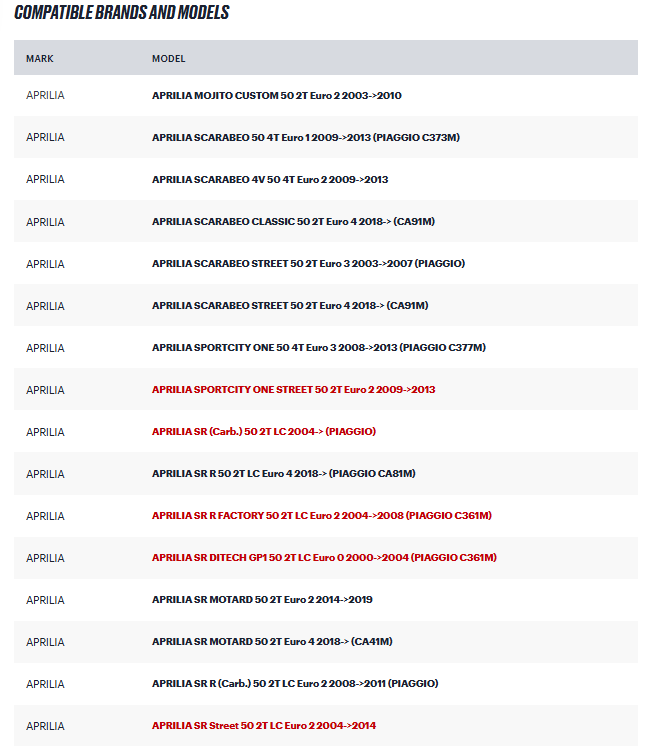

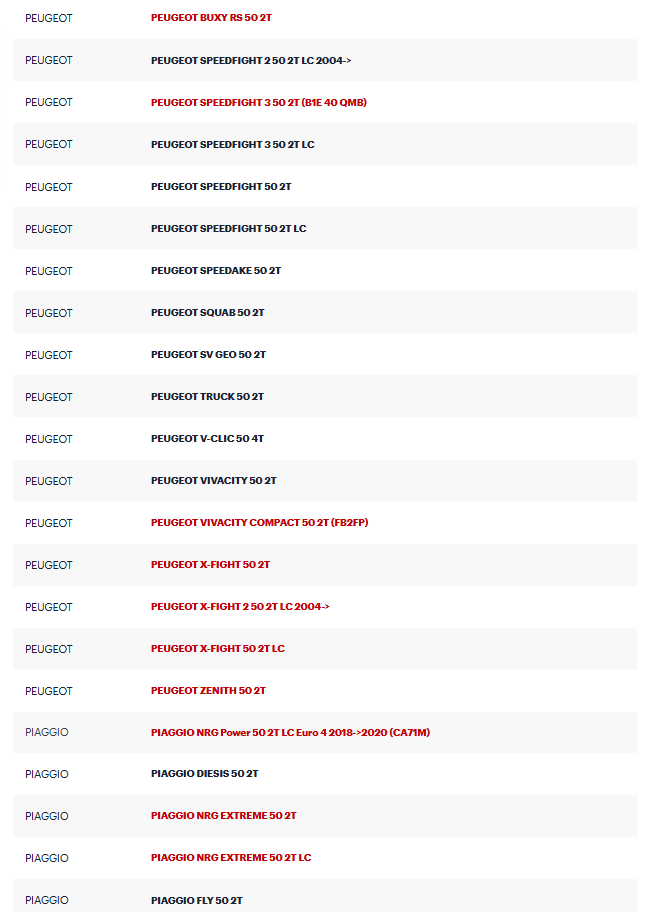

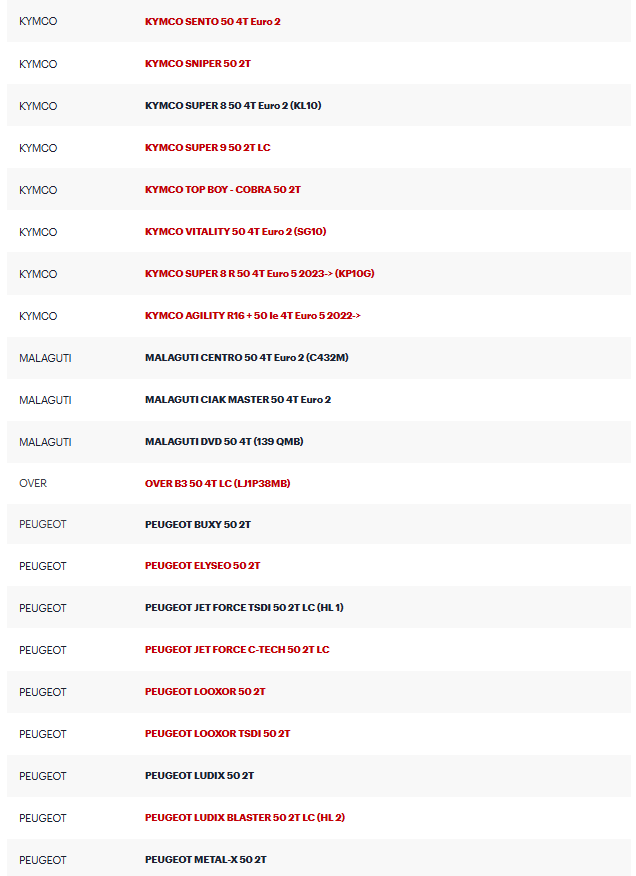

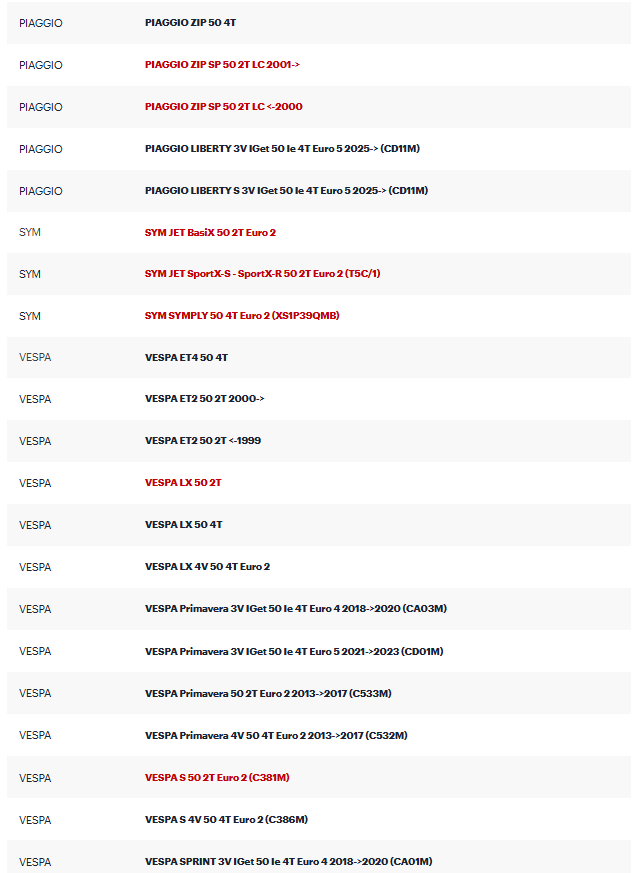

Compatible brands and models
Mark
Model
APRILIA
APRILIA MOJITO CUSTOM 50 2T euro 2 2003->2010
APRILIA
APRILIA SCARABEO 50 4T euro 1 2009->2013 (PIAGGIO C373M)
APRILIA
APRILIA SCARABEO 4V 50 4T euro 2 2009->2013
APRILIA
APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M)
APRILIA
APRILIA SCARABEO STREET 50 2T euro 3 2003->2007 (PIAGGIO)
APRILIA
APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M)
APRILIA
APRILIA SPORTCITY ONE 50 4T euro 3 2008->2013 (PIAGGIO C377M)
APRILIA
APRILIA SPORTCITY ONE STREET 50 2T euro 2 2009->2013
APRILIA
APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO)
APRILIA
APRILIA SR R 50 2T LC euro 4 2018-> (PIAGGIO CA81M)
APRILIA
APRILIA SR R FACTORY 50 2T LC euro 2 2004->2008 (PIAGGIO C361M)
APRILIA
APRILIA SR DITECH GP1 50 2T LC euro 0 2000->2004 (PIAGGIO C361M)
APRILIA
APRILIA SR MOTARD 50 2T euro 2 2014->2019
APRILIA
APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M)
APRILIA
APRILIA SR R (carb.) 50 2T LC euro 2 2008->2011 (PIAGGIO)
APRILIA
APRILIA SR Street 50 2T LC euro 2 2004->2014
APRILIA
APRILIA SXR 50 ie 4T euro 5 2021-> (CD32M)
BAOTIAN
BAOTIAN ECO BIKE 50 4T 2006->2010 (139 QMB)
BAOTIAN
BAOTIAN REBEL – ROCKY – TANCO 9/12 50 4T 2010->2015
CAGIVA
CAGIVA CITY 50 2T euro 0 1996->1997
DERBY
DERBI ATLANTIS – BULLET 50 2T 2003->
DERBY
DERBI GP1 50 2T LC
DERBY
DERBI GP1 OPEN 50 2T LC
DERBY
DERBI GP1 REVOLUTION 50 2T LC
DERBY
DERBI VARIANT Sport 50 2T
GARELLI
GARELLI FLEXI’ 50 4T euro 2 (1P139 QMB)
GARELLI
GARELLI TIESSE FOUR 50 4T euro 2 (1P39QMB)
GILERA
GILERA DNA 50 2T LC
GILERA
GILERA EASY MOVING 50 2T
GILERA
GILERA ICE 50 2T
GILERA
GILERA RUNNER PureJet 50 2T LC <-2005 GILERA GILERA RUNNER PureJet 50 2T LC 2006->
GILERA
GILERA RUNNER SP 50 2T LC <-2005 GILERA GILERA RUNNER SP 50 2T LC 2006-> (C451M)
GILERA
GILERA RUNNER 50 2T LC
GILERA
GILERA STORM 50 2T
GILERA
GILERA STALKER 50 2T
GILERA
GILERA TYPHOON 50 2T
GILERA
GILERA TYPHOON X 50 2T
HUPPER
HUPPER MONTECARLO 30 50 4T (139QMB)
ITALY
ITALJET JET SET 50 2T
ITALY
ITALJET TORPEDO NEW 50 2T
KYMCO
KYMCO AGILITY R16 – RS 50 4T euro 2 (KL10B)
KYMCO
KYMCO AGILITY R16 50 2T euro 2 (KF10B)
KYMCO
KYMCO AGILITY R10/12 – RS 50 4T euro 2 (KL10B)
KYMCO
KYMCO AGILITY R12 50 ie 4T euro 4 2019->
KYMCO
KYMCO AGILITY R16 + 50 2T euro 2 2016-> (KF10D)
KYMCO
KYMCO AGILITY R16 + 50 4T euro 2 2017-> (KL10C)
KYMCO
KYMCO AGILITY R16 + 50 ie 4T euro 4 2019->2021
KYMCO
KYMCO DINK 50 2T
KYMCO
KYMCO DINK 50 4T euro 2
KYMCO
KYMCO DINK 50 2T LC
KYMCO
KYMCO DJ Y 50 2T
KYMCO
KYMCO HEROISM 50 2T
KYMCO
KYMCO LIKE 50 4T euro 2 (KG10A)
KYMCO
KYMCO PEOPLE 50 2T
KYMCO
KYMCO PEOPLE 50 4T euro 2
KYMCO
KYMCO PEOPLE S 50 4T euro 2 (BB10)
KYMCO
KYMCO PEOPLE S 50 ie 4T Euro 4 2019-> (KP10)
KYMCO
KYMCO SENTO 50 4T euro 2
KYMCO
KYMCO SNIPER 50 2T
KYMCO
KYMCO SUPER 8 50 4T euro 2 (KL10)
KYMCO
KYMCO SUPER 9 50 2T LC
KYMCO
KYMCO TOP BOY – COBRA 50 2T
KYMCO
KYMCO VITALITY 50 4T euro 2 (SG10)
KYMCO
KYMCO SUPER 8 R 50 4T euro 5 2023-> (KP10G)
KYMCO
KYMCO AGILITY R16 + 50 ie 4T euro 5 2022->
MALAGUTI
MALAGUTI CENTRO 50 4T euro 2 (C432M)
MALAGUTI
MALAGUTI CIAK MASTER 50 4T euro 2
MALAGUTI
MALAGUTI DVD 50 4T (139 QMB)
OVER
OVER B3 50 4T LC (LJ1P38MB)
PEUGEOT
PEUGEOT BUXY 50 2T
PEUGEOT
PEUGEOT ELYSEO 50 2T
PEUGEOT
PEUGEOT JET FORCE TSDI 50 2T LC (HL 1)
PEUGEOT
PEUGEOT JET FORCE C-TECH 50 2T LC
PEUGEOT
PEUGEOT LOOXOR 50 2T
PEUGEOT
PEUGEOT LOOXOR TSDI 50 2T
PEUGEOT
PEUGEOT LUDIX 50 2T
PEUGEOT
PEUGEOT LUDIX BLASTER 50 2T LC (HL 2)
PEUGEOT
PEUGEOT METAL-X 50 2T
PEUGEOT
PEUGEOT BUXY RS 50 2T
PEUGEOT
PEUGEOT SPEEDFIGHT 2 50 2T LC 2004->
PEUGEOT
PEUGEOT SPEEDFIGHT 3 50 2T (B1E 40 QMB)
PEUGEOT
PEUGEOT SPEEDFIGHT 3 50 2T LC
PEUGEOT
PEUGEOT SPEEDFIGHT 50 2T
PEUGEOT
PEUGEOT SPEEDFIGHT 50 2T LC
PEUGEOT
PEUGEOT SPEEDAKE 50 2T
PEUGEOT
PEUGEOT SQUAB 50 2T
PEUGEOT
PEUGEOT SV GEO 50 2T
PEUGEOT
PEUGEOT TRUCK 50 2T
PEUGEOT
PEUGEOT V-CLIC 50 4T
PEUGEOT
PEUGEOT VIVACITY 50 2T
PEUGEOT
PEUGEOT VIVACITY COMPACT 50 2T (FB2FP)
PEUGEOT
PEUGEOT X-FIGHT 50 2T
PEUGEOT
PEUGEOT X-FIGHT 2 50 2T LC 2004->
PEUGEOT
PEUGEOT X-FIGHT 50 2T LC
PEUGEOT
PEUGEOT ZENITH 50 2T
PIAGGIO
PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M)
PIAGGIO
PIAGGIO DIESIS 50 2T
PIAGGIO
PIAGGIO NRG EXTREME 50 2T
PIAGGIO
PIAGGIO NRG EXTREME 50 2T LC
PIAGGIO
PIAGGIO FLY 50 2T
PIAGGIO
PIAGGIO FLY 50 4T
PIAGGIO
PIAGGIO NEW FLY 4V 50 4T euro 2
PIAGGIO
PIAGGIO FREE 50 2T
PIAGGIO
PIAGGIO LIBERTY 50 2T
PIAGGIO
PIAGGIO LIBERTY 3V iGet 50 ie 4T euro 3 2016->2017 (C541M)
PIAGGIO
PIAGGIO LIBERTY 3V iGet 50 ie 4T euro 4 2018->2020 (CA11M)
PIAGGIO
PIAGGIO LIBERTY 3V iGet 50 ie 4T euro 5 2021->2024 (CD11M)
PIAGGIO
PIAGGIO LIBERTY 50 4T
PIAGGIO
PIAGGIO LIBERTY 4V 50 4T euro 2
PIAGGIO
PIAGGIO NRG MC2 50 2T LC <-1997 PIAGGIO PIAGGIO NRG MC2 50 2T LC 1998->
PIAGGIO
PIAGGIO NRG MC3 Purejet 50 2T LC
PIAGGIO
PIAGGIO NRG 50 2T LC
PIAGGIO
PIAGGIO NRG MC3 DT 50 2T
PIAGGIO
PIAGGIO NRG MC3 DD 50 2T LC
PIAGGIO
PIAGGIO NTT 50 2T LC
PIAGGIO
PIAGGIO NRG Power DD 50 2T LC
PIAGGIO
PIAGGIO NRG Power DT 50 2T (C453M)
PIAGGIO
PIAGGIO NRG Power Purjet 50 2T LC
PIAGGIO
PIAGGIO QUARTZ 50 2T LC
PIAGGIO
PIAGGIO SFERA RESTYLING 50 2T
PIAGGIO
PIAGGIO ZIP S 3V iGet 50 ie 4T euro 5 2021->
PIAGGIO
PIAGGIO TYPHOON 50 2T 2007->2010
PIAGGIO
PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M)
PIAGGIO
PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M)
PIAGGIO
PIAGGIO ZIP Fast Rider 50 2T
PIAGGIO
PIAGGIO ZIP 50 2T 2000-> (C25EM)
PIAGGIO
PIAGGIO ZIP 3V iGet 50 ie 4T euro 4 2018->2020
PIAGGIO
PIAGGIO ZIP 3V iGet 50 ie 4T euro 5 2021->
PIAGGIO
PIAGGIO ZIP 50 4T
PIAGGIO
PIAGGIO ZIP SP 50 2T LC 2001->
PIAGGIO
PIAGGIO ZIP SP 50 2T LC <-2000 PIAGGIO PIAGGIO LIBERTY 3V iGet 50 ie 4T euro 5 2025-> (CD11M)
PIAGGIO
PIAGGIO LIBERTY S 3V iGet 50 ie 4T euro 5 2025-> (CD11M)
SYM
SYM JET BasiX 50 2T euro 2
SYM
SYM JET SportX-S – SportX-R 50 2T euro 2 (T5C/1)
SYM
SYM SYMPLY 50 4T euro 2 (XS1P39QMB)
VESPA
VESPA ET4 50 4T
VESPA
VESPA ET2 50 2T 2000->
VESPA
VESPA ET2 50 2T <-1999 VESPA VESPA LX 50 2T VESPA VESPA LX 50 4T VESPA VESPA LX 4V 50 4T euro 2 VESPA VESPA Primavera 3V iGet 50 ie 4T euro 4 2018->2020 (CA03M)
VESPA
VESPA Primavera 3V iGet 50 ie 4T euro 5 2021->2023 (CD01M)
VESPA
VESPA Primavera 50 2T euro 2 2013->2017 (C533M)
VESPA
VESPA Primavera 4V 50 4T euro 2 2013->2017 (C532M)
VESPA
VESPA S 50 2T euro 2 (C381M)
VESPA
VESPA S 4V 50 4T euro 2 (C386M)
VESPA
VESPA SPRINT 3V iGet 50 ie 4T euro 4 2018->2020 (CA01M)
VESPA
VESPA SPRINT 3V iGet 50 ie 4T euro 5 2021->2023 (CD01M)
VESPA
VESPA Sprint 50 2T euro 2
VESPA
VESPA Sprint 4V 50 4T euro 2
VESPA
VESPA Sprint S 3V iGet 50 ie 4T euro 5 2024->2025 (CD01M)
VESPA
VESPA Primavera 3V iGet 50 ie 4T euro 5 2024->2025 (CD01M)
VESPA
VESPA Primavera S 3V iGet 50 ie 4T euro 5 2024->2025 (CD01M)
VESPA
VESPA Primavera Tech 3V iGet 50 ie 4T euro 5 2024->2025 (CD01M)
VESPA
VESPA Primavera Officina 8 50 ie 4T euro 5 2025 (CD01M)
VESPA
VESPA Primavera 3V iGet 50 ie 4T euro 5 2026-> (CD01M)
VESPA
VESPA Primavera S 3V iGet 50 ie 4T euro 5 2026-> (CD01M)
VESPA
VESPA Primavera Tech 3V iGet 50 ie 4T euro 5 2026-> (CD01M)
VESPA
VESPA Primavera Officina 8 50 ie 4T euro 5 2026-> (CD01M)
VESPA
VESPA Primavera RED 50 ie 4T euro 5 2026-> (CD01M)
VESPA
VESPA Sprint S 3V iGet 50 ie 4T euro 5 2026-> (CD01M)
WT MOTORS
WT MOTORS BILBAO 50 4T (PEDA 139QMB)
